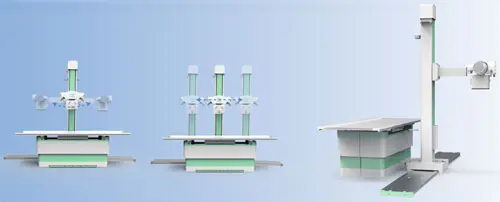

PLD6500 Medical Diagnostic X-Ray Equipment

The PLD6500 high frequency digital x-ray equipment can be applied to satisfy the radiographic needs of different body parts: head, chest, abdomen, waist,thorax, pelvis, and limbs.The PLD6500 is also capable of serving different positions: lay decubitus,normotopia, side position,etc.It is designed as a fixed digital x-ray machine, though it can also be compacted into limited spaces, like buses and trucks.

Sharp Image Support Your Accurate Diagnose

63KW generator makes it different,the generator assures the best image in every operating condition along with reduced patient close and extend x-ray tube lifetime.

● The PLD6500 high frequency digital x-ray equipmentcan be applied to satisfy the radiographic needs of different body parts: head, chest, abdomen, waist, thorax，pelvis, and limbs.
● The PLD6500 is also capable of serving different positions: lay decubitus, normotopia, side position, etc.
● It is designed as a fixed digital x-ray machine, though it can also be compacted into limited spaces, like buses and trucks.

DR DETECTOR

Flat panel detector improvse your workflow,exam speed and comfort with efficiency
A-si detector with CSI screen,excellent spatial resolution
Active area:17” x17″

X-RAY SOURCE ASSEMBLY

our generator provide the right amount of penetration, reducing exposure times and retakes.
Automatic exposure control(AEC) enables auto selection of radiographic factors, saves time, eliminates retakes, increases diagnostic capability and lowers the radiation dose.(Optional)

Image acquisition workstation DRA20l

Computer system
Processor: Intel Core Quad Core Processor i5-6500 (3.20 GHz)
Memory: 4 GB DDR3L
Hard disk: 1T SATA(7200rpm)
ptical drive:DVD-RW disc burner
