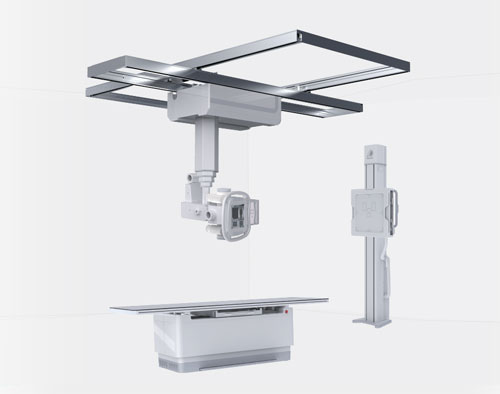

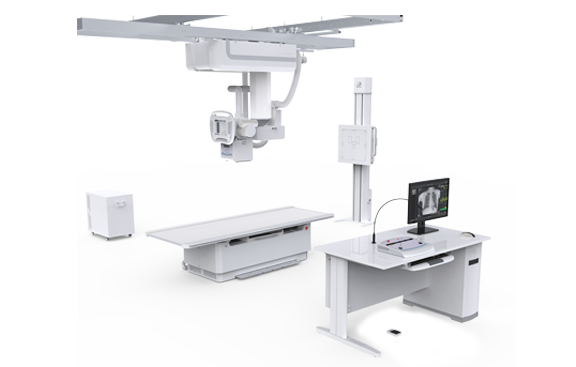

PLD7100

Ceiling Suspended Digital Radiography

Ceiling Suspended Digital Radiography Ceiling Suspended Digital Radiography

location: Products> Suspending DR
Introduce

Features & Benefits



Clear Vision and Image
Easier Clinical Diagnosis

  • Hundred-micron configuration (Optional)

A hundred-micron FPD with excellent imaging performance;
4K*4K acquisition matrix and 100μm pixel size;
Clearly display small lesions in each part of the examination;

  • Clear lung texture, easy to observe

Effectively displaying more cell image details;
Clearer and sharper details such as hilar shadow structure and lung texture;


More details of complex joints

Clear skeletal images;
Rich imaging details;
More minute details of each bone trabeculae and bone cortex;
More accurate diagnosis for orthopedic trauma patients.





Intelligent Motion Design Convenient and Efficient

  • One-button positioning function

The tube and the detector can achieve intelligent automatic tracking, complete horizontal and vertical movement, With one-button upright and prone position conversion, intelligent movement is more easily.

  • Manual and electric control with automatic switchover

The tube and the detector can achieve vertical electric control and horizontal manual/electric control to meet the different operation habit for the medical staff.

  • Electric lifting table

The table can ascend or descend in a large range low ground clearance, which is convenient to move patients and reduce patients pain to improve work efficiency.

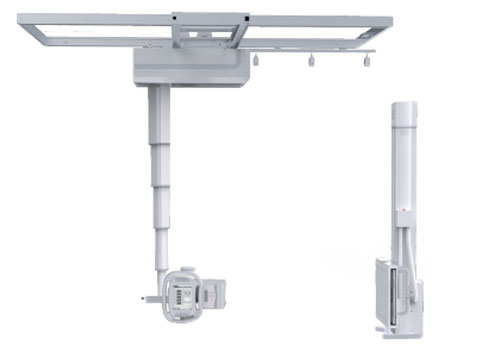

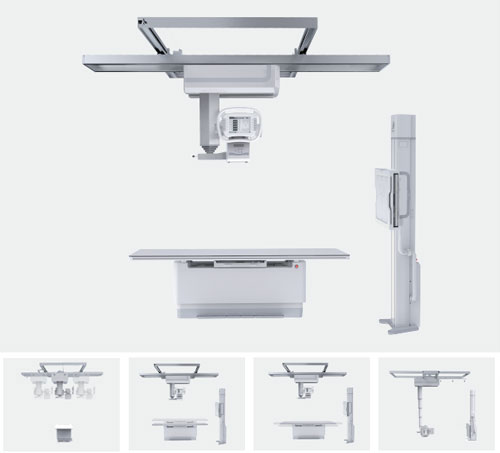

  • Flexible high efficient multi-dimensional movement

Ceiling suspended frame covers a widely exposure area.
Multi-dimensional moveable bucky stand for various radiography placements.


  • Flexible X-ray tube movement

Free rotation of X-ray tube enables different angle of radiography for complex orthopedic position, allowing easy positioning for patient on wheelchair and stretcher and avoiding missed diagnoses or misdiagnosis caused by blind shots.




Intelligent Control System Improve Work Efficiency

  • Auto focusing

The focal point of the X-ray tube automatically zooms in on the detector, no requiring manual operation.

  • Auto tracking

Synchronized vertical travel of the X-ray tube and bucky unit, providing fast positioning for examination.

  • Auto exposure control (Optional)

Automatically controlling the amount of total radiation to ensure a better image quality.

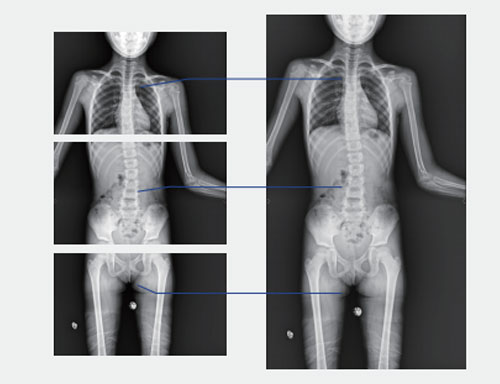

  • Auto image stitching (Optional)

Easy full spine and full lower extrimities radiography, improving diagnostic efficiency.

  • In-tray charging

Built-in charging port in both bucky stand and bucky table can always speed up workflow with fast charging.

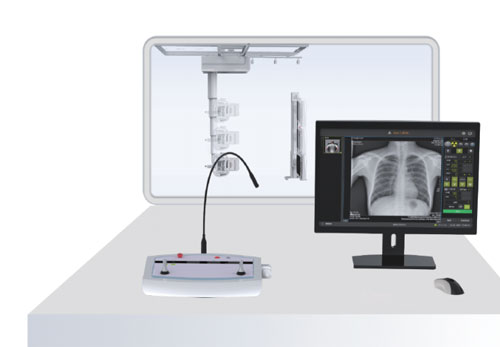

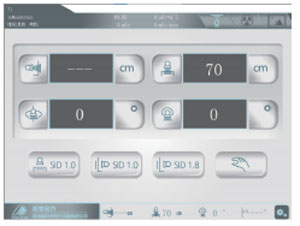

User-friendly Touch Interface Easy Exposure Control

  • Exposure preset

LCD touch screen to control the SID movement and tube rotation.

  • APR setting

The system offers an easy-to-understand visual logic for intuitive exposure parameter setting.

  • Emergency mode

Allowing instant exposure for fast examination, saving valuable time for emergency workflow.

  • Data synchronization

Exposure parameters synchronization between touch screen interface and workstation, speeding up the workflow in daily routine.


  • Self-adaptive screen

Auto rotation between table and bucky stand, offering easy and convenient operation.

  • DAP monitoring (Optional)

Real-time DAP monitoring is available, measuring actual dose level and displaying on the console.




Rich Options for Clinical Application

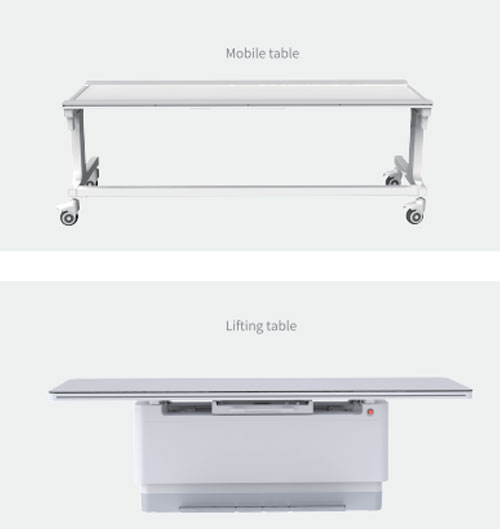

  • Multiple bucky table options

● Two available options of bucky table: mobile type and lifting type. The lifting table is able to lower to a minimum of 56cm, maximizing the focus on patient care.

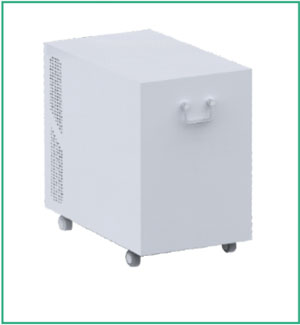

  • High inverter frequency generator

● Self-developed high voltage generator provides high quality and stable X-ray.
● Unique mobile design maximizes the spacial layout.

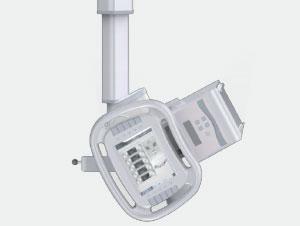

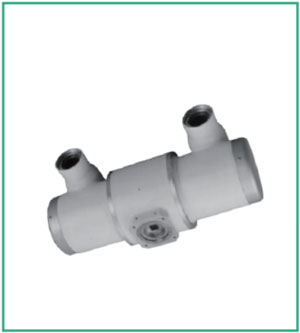

  • High performance X-ray tube

● X-ray tube with high heat capacity and high speed anode rotation.
● Extending the workflow with stable image quality in a variety of clinical application.

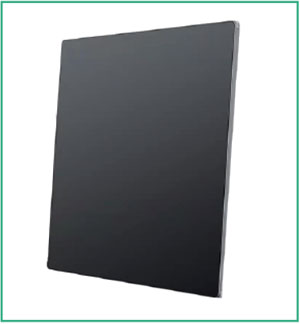

  • High end panel detector

● High spacial resolution imaging detector brings crystal clear image with delicate details.
● Flexible configuration and option: portable or wireless, single or double.




Excellent imaging system contributes to high-quality images.
