PLD 9600D

All-In-One Digital Radiography and Digital Fluoroscopy System

All-In-One Digital Radiography and Digital Fluoroscopy System All-In-One Digital Radiography and Digital Fluoroscopy System

location: Products> DRF
Introduce

Features & Benefits




All In one Digital Radiography and Digital Fluoroscopy System

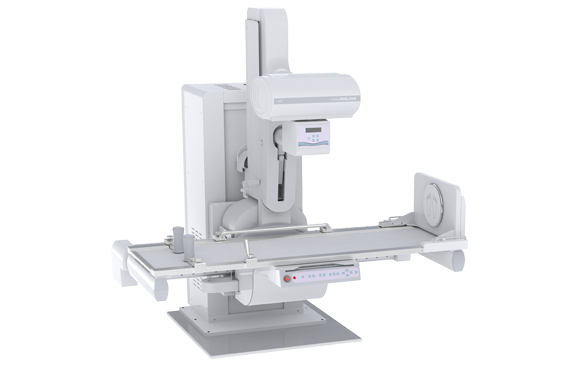

PLD9600D is a multifunctional dynamic radiography and fluoroscopy X-ray system, which can be applied to a variety of clinical X-ray examination fields such as radiography, digital fluoroscopy. contrast and visualized precise DR shooting. The system fully meets the requirements for accurate diagnosis and convenient equipment operation.

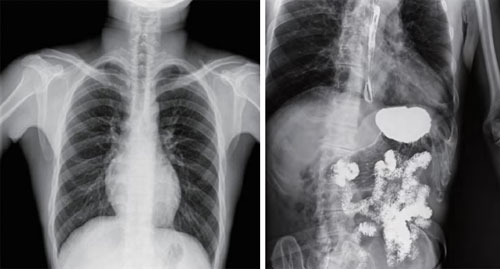

High-quality Digital lmage

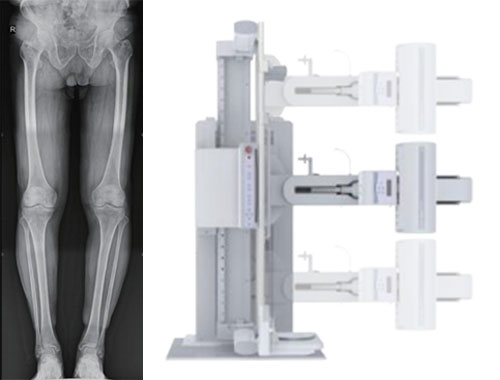

Automatic image stitching provides an important data reference for the formulation of preoperative surgical plans and the evaluation of postoperative effects such as scoliosis and loading bone orthotics, knee prosthesis, and hip replace-ment surgery. (optional)


IBS

The system automatically adjusts the brightness and contrast of the image based on the thickness and density of the imaging area, providing clearer images.

PLD9600D is equipped with a 17 x17 inch large size dynamic FPD, which brings large acquisition area, wide imaging field and full image coverage.





Intelligent Multi-functional Design for Various Examinations

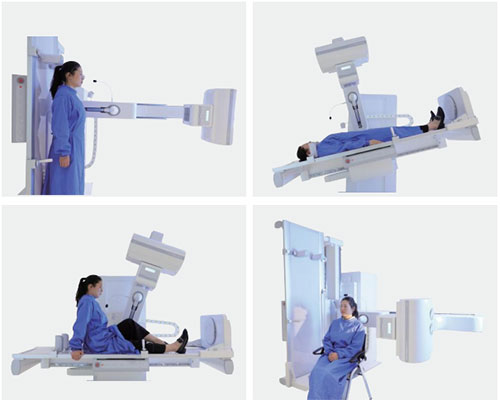

The flexible mechanical design provides convenience for various examinations

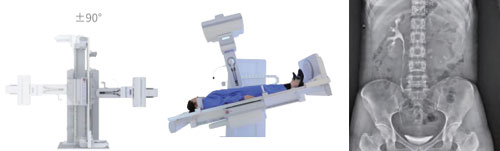

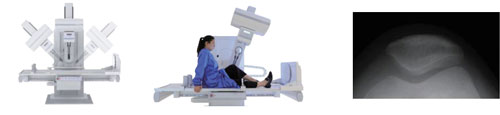

X-ray tube tilting angle radiography, meet clinical radiography needs of special parts. Such as root bone axial, kneecap axial, cervical vertebra frontal, sacrum-coccyx, etc.

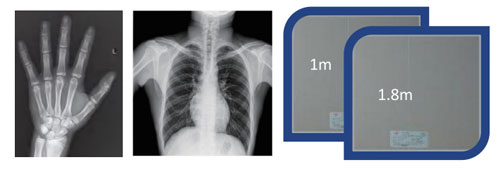

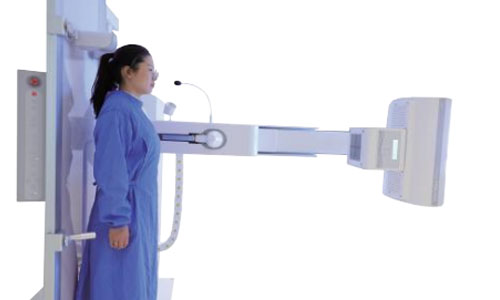

The SlD can be stretched to 1.8m to do the chest radiography,bra frontal, sacrum-coccyx, etc.

Two sets of grid are suitable for radiography under different SlD conditions.

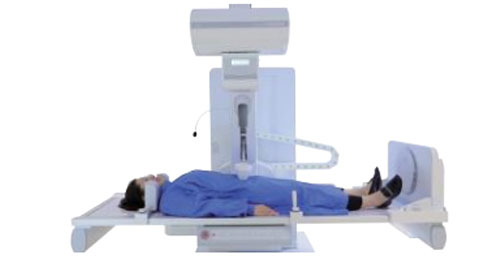

The lifting table provides easy patient transfer.






A 17-inch FPD provides a larger field of view, avoids multiple exposures, reduces radiation dosage, and improves examination efficiency.


The table can be tilted to – 30°, which greatly extends the clinical application. For example IVP IVU,HSG, lower limb venography and other retrograde pyelography.

All the mechanical movement of the table can be operated by this buttons, which brings sgreat convenience for doctors.






The high dynamic acquisition frame rate can avoid loss of frame and improve diagnostic accuracy

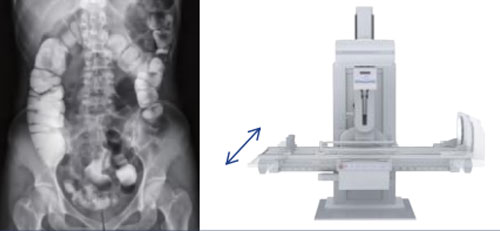

A dynamic FPD, realizing radiography, fluoroscopy and contrast functions. All the abdominal intestines in one shot.

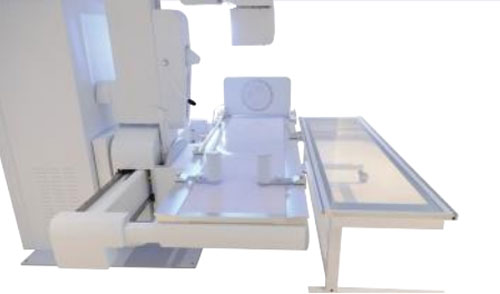

The table can be lateral moved without changing the patient position.

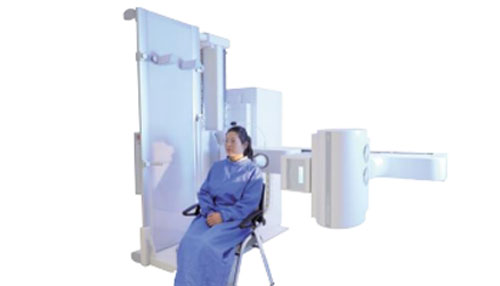

Even wheelchair patients can be examined simply by extending the SlD.

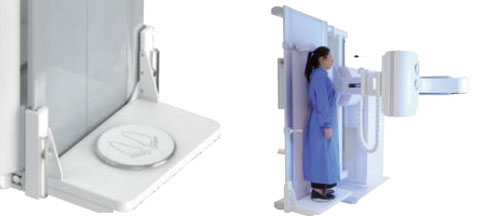

An electric rotating pedal allows for multi-angle observation without the need for the patient to turn.(Optional)

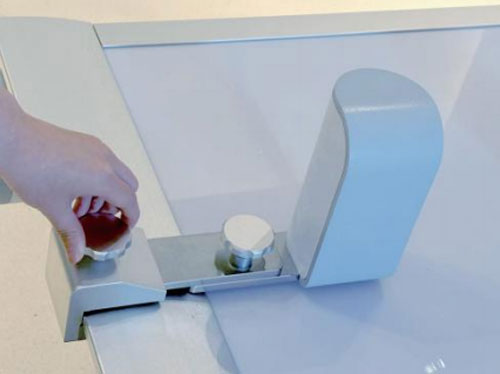

Both the shoulder support and armrests are designed to be removable, facilitating a wider operating space for doctors during endoscopic surgery.

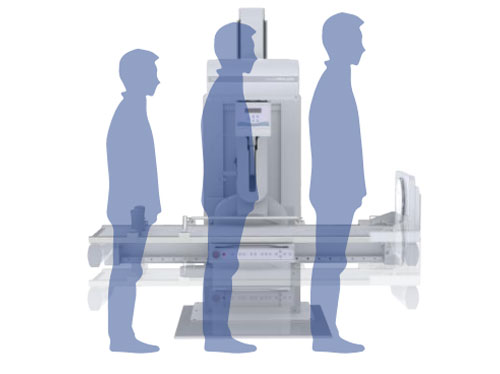

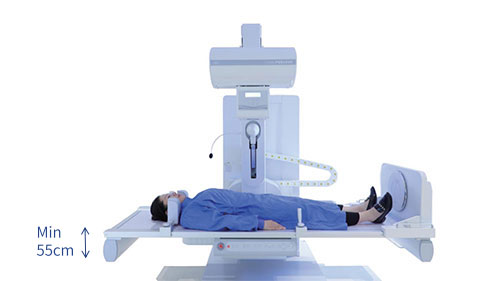

The function of table lifting allows doctors of different heights to find their most comfortable operating height.

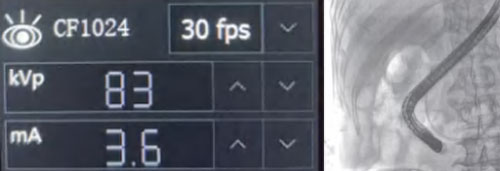

In pulse mode, the frame rate of 25 frames per second ensures smooth fluoroscopy image.

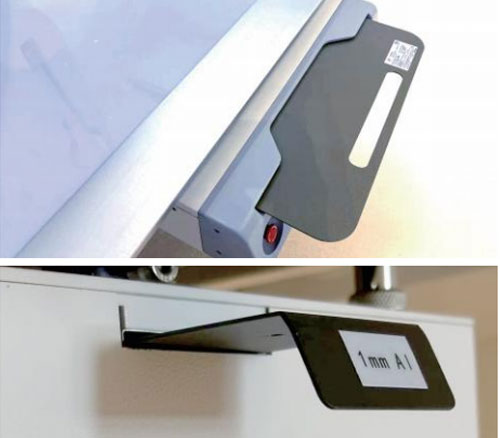

The removable grid and filter provide dose protection during pediatric examinations.

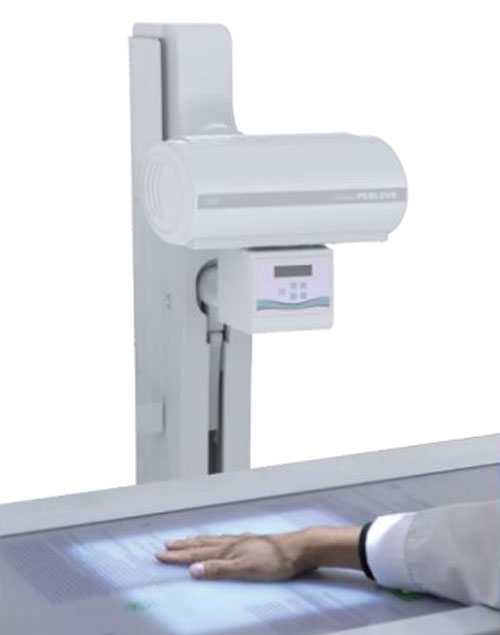

The automatic electric collimator can automatically adjust the beam size according to different body positions,reducing unnecessary testing exposures by previewing the effective field of view in the screen and reducing the radiation damage to medical staff and patient.




Intelligent Multi-functional Design for Various Examinations

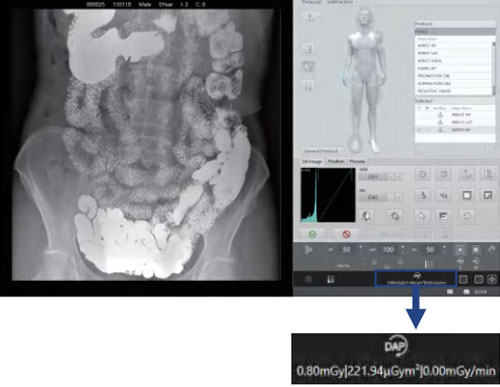

DAP function (optional)

● The industry first push DAP radiation dose monitoring system manufacturers, deep technical accumulation.

● DAP intelligent dose monitoring system can record the single examination dose andmanage the radiation dose absorption of patients.

● DAP function is an important functional index to measure the quality of X-ray machine,and it is also a necessary function to export to European and American countries

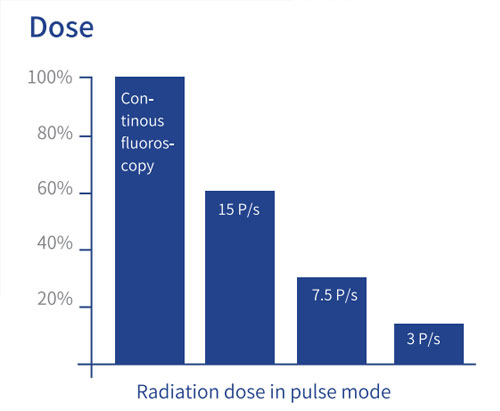

Pulsed Fluoroscopy

Acquire clear images with a lower radiation dose.




Productive and Comfortable Workflow

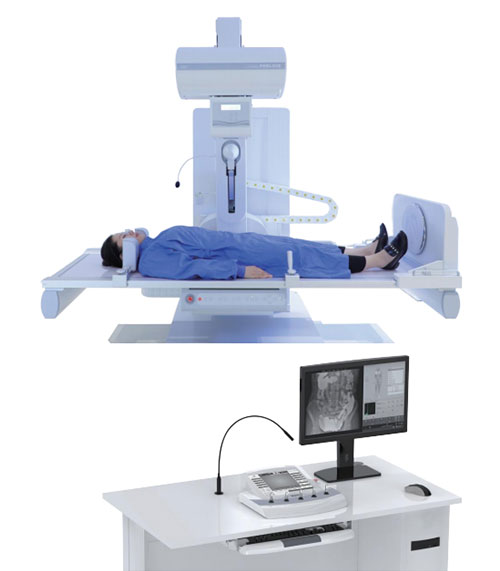

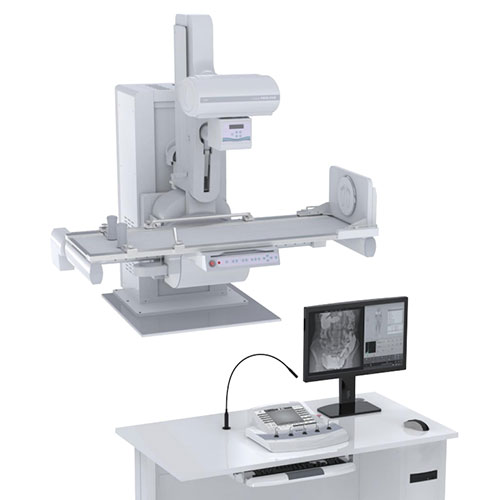

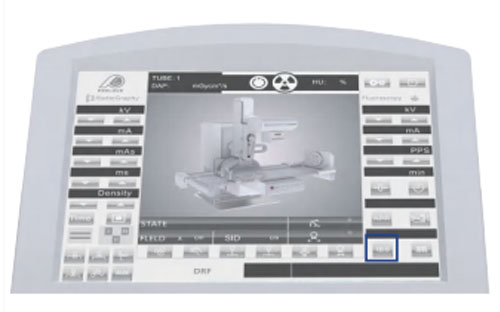

A 15-inch LCD touchscreen workstation integrates all mechanical operations and can also adjust exposure parameters, providing great convenience for doctors.

Customized Surgical Console (optional)

It can be operated by operators near the equipment, shortening the distance between the machine room and the operation room.

It is convenient for operators to observe the patient’s condition in real time and carryout reasonable operation, improving efficiency.

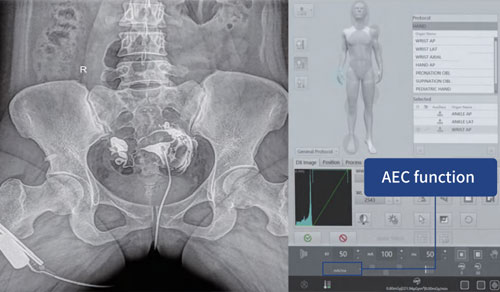

AEC function (optional)

Intelligent control exposure time, more efficient.
Intelligent control of light sensitivity according to different parts.
Reduces operational difficulties and shortens the workflow.




Features & Benefits


All In one Digital Radiography and Digital Fluoroscopy System

PLD9600D is a multifunctional dynamic radiography and fluoroscopy X-ray system, which can be applied to a variety of clinical X-ray examination fields such as radiography, digital fluoroscopy. contrast and visualized precise DR shooting. The system fully meets the requirements for accurate diagnosis and convenient equipment operation.

High-quality Digital lmage

Automatic image stitching provides an important data reference for the formulation of preoperative surgical plans and the evaluation of postoperative effects such as scoliosis and loading bone orthotics, knee prosthesis, and hip replace-ment surgery. (optional)

IBS

The system automatically adjusts the brightness and contrast of the image based on the thickness and density of the imaging area, providing clearer images.

PLD9600D is equipped with a 17 x17 inch large size dynamic FPD, which brings large acquisition area, wide imaging field and full image coverage.

Intelligent Multi-functional Design for Various Examinations

The flexible mechanical design provides convenience for various examinations

X-ray tube tilting angle radiography, meet clinical radiography needs of special parts. Such as root bone axial, kneecap axial, cervical vertebra frontal, sacrum-coccyx, etc.

The SlD can be stretched to 1.8m to do the chest radiography,bra frontal, sacrum-coccyx, etc.

Two sets of grid are suitable for radiography under different SlD conditions.

The lifting table provides easy patient transfer.

A 17-inch FPD provides a larger field of view, avoids multiple exposures, reduces radiation dosage, and improves examination efficiency.

The table can be tilted to – 30°, which greatly extends the clinical application. For example IVP IVU,HSG, lower limb venography and other retrograde pyelography.

All the mechanical movement of the table can be operated by this buttons, which brings sgreat convenience for doctors.

The high dynamic acquisition frame rate can avoid loss of frame and improve diagnostic accuracy

The compression device helps the contrast medium to fill the stomach, allowing observation of the overall morphology of the stomach.

A dynamic FPD, realizing radiography, fluoroscopy and contrast functions. All the abdominal intestines in one shot.
The table can be lateral moved without changing the patient position.

Even wheelchair patients can be examined simply by extending the SlD.

An electric rotating pedal allows for multi-angle observation without the need for the patient to turn.(Optional)


Both the shoulder support and armrests are designed to be removable, facilitating a wider operating space for doctors during endoscopic surgery.

The function of table lifting allows doctors of different heights to find their most comfortable operating height.

In pulse mode, the frame rate of 25 frames per second ensures smooth fluoroscopy image.

The removable grid and filter provide dose protection during pediatric examinations.

The automatic electric collimator can automatically adjust the beam size according to different body positions,reducing unnecessary testing exposures by previewing the effective field of view in the screen and reducing the radiation damage to medical staff and patient.

Intelligent Multi-functional Design for Various Examinations

DAP function (optional)

● The industry first push DAP radiation dose monitoring system manufacturers, deep technical accumulation.

● DAP intelligent dose monitoring system can record the single examination dose andmanage the radiation dose absorption of patients.

● DAP function is an important functional index to measure the quality of X-ray machine,and it is also a necessary function to export to European and American countries

Pulsed Fluoroscopy

Acquire clear images with a lower radiation dose.

Productive and Comfortable Workflow

A 15-inch LCD touchscreen workstation integrates all mechanical operations and can also adjust exposure parameters, providing great convenience for doctors.

Customized Surgical Console (optional)

It can be operated by operators near the equipment, shortening the distance between the machine room and the operation room.

It is convenient for operators to observe the patient’s condition in real time and carryout reasonable operation, improving efficiency.

AEC function (optional)

Intelligent control exposure time, more efficient.
Intelligent control of light sensitivity according to different parts.
Reduces operational difficulties and shortens the workflow.
