High definition image,Easy for clinical PLX5300A
Mobile,accurate and versatile PLX5300A is widely used in radiology,ward,ICU,operating room.
| High definition image,Easy for clinical High quality portable FPD,outstanding acquisition conversion performance,the sharp clinical image can be guaranteed.It can realize digital radiography of all human body parts friendly,like head,limbs,chest,spine lumber and so on.
|
Enhanced image clarity delivers diagnosis precision
High power,high frequency and high voltage generator PLX5300A is equipped with 50kW split high-frequency and high-voltage generator,with stable high-voltage output,high-quality X-ray can be stably output with the x-ray tube,which meet the needs of a variey f positions and provide guarantee for clear clinical images.
Excellent wireless detector PLX5300A adopts 17*17 inches wireless detector,which has wide field of vision and convenient positioning;with high image clarity and fine imaging.The 16 bit gray scale can clearly show the radiation position tissue details of the exposure site,with high image differentiation and accurate clinical diagnosis. | Control dose,boost quality
Intelligent dose control technology Intelligent dose control technology can accurately adjust the radiation dose according to different body types and different parts,so as toreduce unnecessary radiation damage for patients and medical staff.
Dual exposure mode PLX5300A is equipped with two exposure modes:handbrake exposure mode and wireless remote control exposure mode.Remote exposure device can easily realize compartmentt operation,effectively achieve he distance protection of radiation,clinical application is convenient,greatly protecting medical staff from ionizing radiation damage.
Advanced image processing algorithm The post-processing algorithm and technology carried by PLX5300A can greatly improve image quality and significantly reduce radiation dose.
|
High power supply meets all clinical demands
Dual battery work separately
PLX5300A is equipped with a special super capacitor to power the exposure function which charges quickly.Thanks to this,the dependence of mobile DR on power supply is reduced,and the usage scenarios of mobile DR are widened.No matter in the ward,emergency room,or ICU,PLX5300A can complete the shooting tasks excellently.Two groups of mobile power supply are used fo rmoving and exposure respectively. One cable can be connected to achieve super capacitor and lithium battery pack charging at the same time,it will be ready when you need it.
Large heat capacity X-ray tube
PLX5300A uses X-ray tube with large heat capacity. It has excellent heat dissipation and long continuous working time.
Flat panel detector with pluggable battery
The flat panel detector is designed with pluggable battery and comes with backup battery. When the power is exhausted,you only need to replace the batteries to continue operating. The battery features short charging time and long circle life,which supports the continuous operation of the flat panel detector. | Compact,flexible and easy positioning

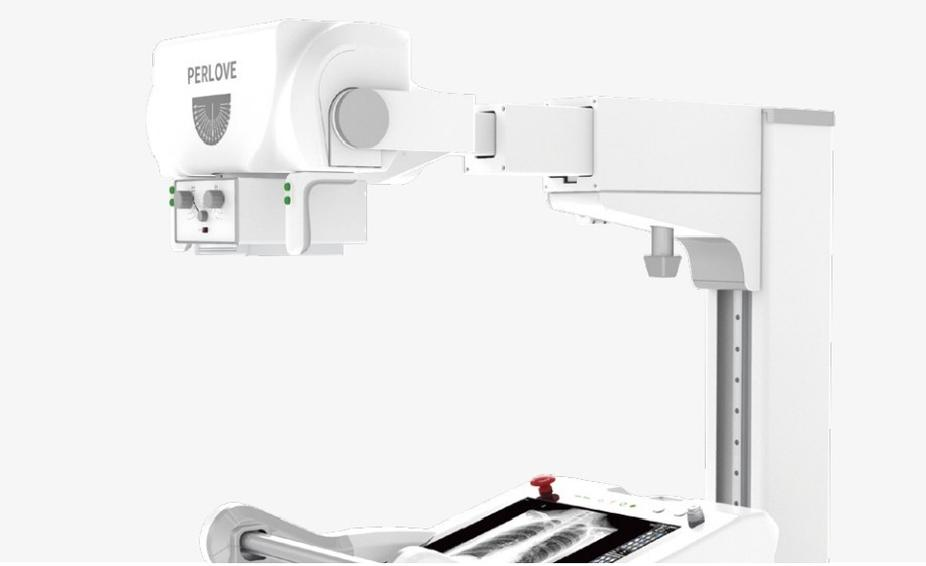

Motor frame and labor saving PLX5300A is equipped with amotor frame,which can realize the wide-range rotation of the column and the horizontal free expansion and contraction of the arm.It can complete shooting inasmall space and meet the needs of various clinical positioning.
Ultrasonic distance measurement, precise positioning The PLX5300A is equipped with an ultrasonic distance measuring beam limiter,which can display the SID photograpy distance digitally,assist in rapid positioning,and achieve precise positioning without frequently moving the patient.  |
Humanized design and intelligent control mode Integrated workstation ● The integrated workstation integrates the image acquisition system and the X-ray generator control system, which is convenient and quick to operate. ● The image acquisition system has multiple functions such as patient management,image acquisition,image processing,image observation,and case reports. ● The workstation supports the DICOM3.0 standard protocol and can transfer images with PACS system.
Interactive design,friendly and convenient ● The excellent human-computer interaction design is more in line with the human body structure,which can effectively relieve the discomfort of muscle soreness and physical fatigue caused by long-term operation,and help medical staff improve work efficiency. ● Built-in preset parameters for standardized postures,graphical display of a variety of commonly used clinical postures,support for re-editing and memorizing posture parameters,therefore doctorss can adjust and optimize exposure parameters personally.
Graphical operation interface ● Large-size touch screen,equipped with professional image processing software with humanizd graphical interactive interface which can shorten the running-in period between medical staff and thee machine effectively. ● Understandable icons,simple and easy to understand,save training time and cost for medical treatment.
| High productivity, better operation experience

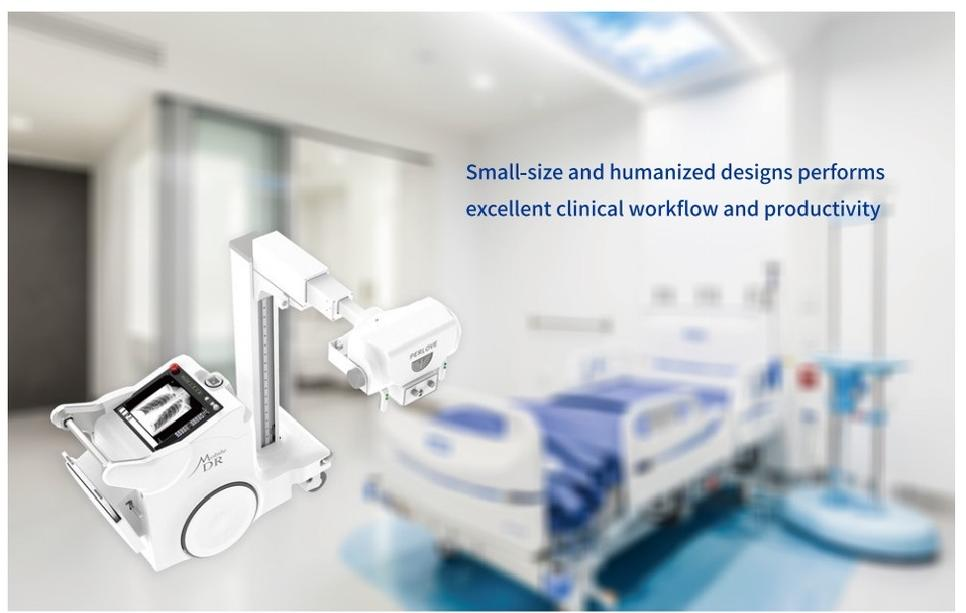

Esay and positioning The PLX5300A can be used flexibly in hospital corridors,wards,ICU, outpatient and emergency departments.The agility of PLX5300A improves its efficiency as a mobile DR to satisfy more clinical needs.
Anti-collision design The front of the PLX5300A is equipped with an automatic collision people and machines well.
Dual motor drive The dual motors combined with excellent mechanical design can be easily carried out by operators with one hand.The motor runssmoothly and quietly,with low noise during traveling,and will not disturb patients even when moving in a quiet ward at night.
Strong adaptability There is no need to change the facilities or install the ground rails and hangers,as long as the protection is well done,the PLX5300A can be used everywhere.
110V/230V power Common voltage can charge and power PLX5300A.
|
Generator and tube | |
Kv scope | 40-150 kV |
Power | 50kw |
Max Tube voltage | 150kV |
mA range | 10mA to 500mA |
mAs range | 1 mAs to 630mAs |
Focal spot | 0.6 / 1.2 |
Detector | |
Type | Digital Cesium Iodide (CsI) |
Detector size | 17" x 17" |
Image resolution | 3.1 lp/mm |
Mobile unit | |
Type | Mobile X-ray unit with telescopic X-ray tube arm and wireless portable detector |
Max. boundary dimension undwe moving condition | 1480 mm * 700 mm * 1750 mm |
Focal point distance from ground | 57 to 167 cm |
Focal point distance to column | 75 to 125 cm |
Stand column rotation | Yes |
Image processing system | |
The medical imaging software has a built-in scattered radiation suppression function, which can reduce the impact of scattered radiation on image quality, thereby making the imaging effect clearer. It can basically replace hardware filter grids. | |
Pregnant women and breast-feeding women are not suitable.
Be sure to take precautions from X-ray before each exposure for patient and user. As permitted by radiography, the exposure shall be conducted with as low dose as possible.
As radioactive equipment, this equipment shall be operated by operator strictly according to provisions of the User Manual and cannot be used for other purpose except medical radiography. As improper operation will damage this equipment, it can only be used by trained personnel with needed radiation knowledge.
The potential side effects of the PLX5300A are related to X-ray radiation. There are mainly two types of side-effects of X-ray radiation:
l Deterministic effects: acute exposure to high levels of radiation may result in skin injury, tissue necrosis
l Stochastic effects: long-term health effects years and decades into future due to cumulative exposure to X-ray radiation, such as increase in DNA mutations, cataract formation and cancer incidence
The X-ray radiation dose of the PLX5300A is low which aims to limit the possibility of collateral side effects. When used as intended under medical supervision of a qualified radiographer, it is not likely anticipated to result in unforeseeable or observable side-effects.

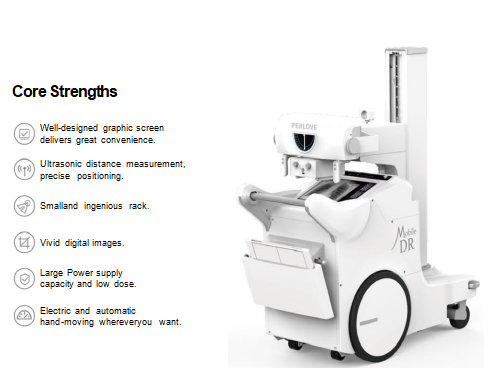

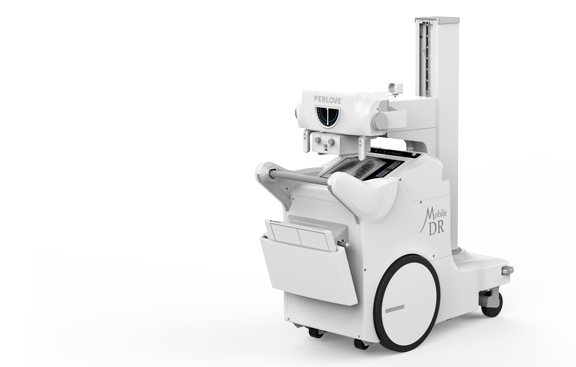

Mobile,accurate and versatile
PLX5300A is widely used in radiology,ward,ICU,operating room.
High definition image,Easy for clinical

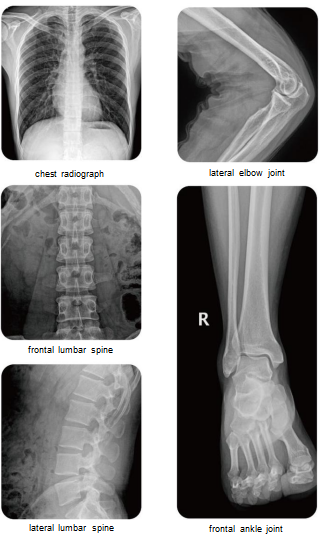

High quality portable FPD,outstanding acquisition conversion performance,the sharp clinical image can be guaranteed.It can realize digital radiography of all human body parts friendly,like head,limbs,chest,spine lumber and so on.
Enhanced image clarity delivers
diagnosis precision
High power,high frequency and high voltage generator
PLX5300A is equipped with 50kW split high-frequency and high-voltage generator,with stable high-voltage output,high-quality X-ray can be stably output with the x-ray tube,which meet the needs of a variety of positions and provide guarantee for clear clinical images.

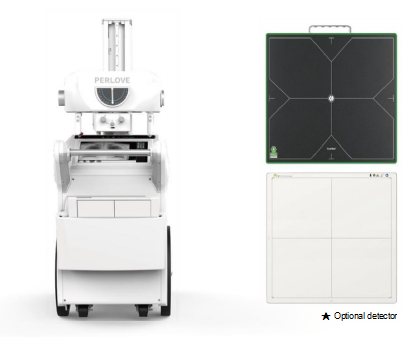

Excellent wireless detector
PLX5300A adopts 17*17 inches wireless detector,which has wide field of vision and convenient positioning;with high image clarity and fine imaging.The 16 bit gray scale can clearly show the radiation position tissue details of the exposure site,with high image differentiation and accurate clinical diagnosis.
Control dose,boost quality
Intelligent dose control technology
Intelligent dose control technology can accurately adjust the radiation dose according to different body types and different parts,so as to reduce unnecessary radiation damage for patients and medical staff.
Dual exposure mode
PLX5300A is equipped with two exposure modes:handbrake exposure mode and wireless remote control exposure mode.Remote exposure device can easily realize compartmentt operation,effectively achieve the distance rotection of radiation,clinical application is convenient,greatly protecting medical staff from ionizing radiation damage.
Advanced image processing algorithm
The post-processing algorithm and technology carried by PLX5300A can greatly improve image quality and significantly reduce radiation dose.
High power supply
meets all clinical demands
Dual battery work separately
PLX5300A is equipped with a special super capacitor to power the exposure function which charges quickly.
Thanks to this,the dependence of mobile DR on power supply is reduced,and the usage scenarios of mobile DR are widened.
No matter in the ward,emergency room,or ICU,PLX5300A can complete the shooting tasks excellently.
Two groups of mobile power supply are used fo rmoving and exposure respectively.
One cable can be connected to achieve super capacitor and lithium battery pack charging at the same time,it will be ready when you need it.
Large heat capacity X-ray tube
PLX5300A uses X-ray tube with large heat capacity.
It has excellent heat dissipation and long continuous working time.
Flat panel detector with pluggable battery
The flat panel detector is designed with pluggable battery and comes with backup battery. When the power is exhausted,you only need to replace the batteries to continue operating. The battery features short charging time and long circle life,which supports the continuous operation of the flat panel detector.
Compact,flexible and easy
positioning
Motor frame and labor saving
PLX5300A is equipped with amotor frame,which can realize the
wide-range rotation of the column and the horizontal free expansion and contraction of the arm.It can complete shooting inasmall space and meet the needs of various clinical positioning.
Ultrasonic distance measurement, precise positioning
The PLX5300A is equipped with an ultrasonic distance
measuring beam limiter,which can display the SID photography distance digitally,assist in rapid positioning,and achieve precise positioning without frequently moving the patient.
Humanized design and intelligent
control mode
Integrated workstation
● The integrated workstation integrates the image acquisition system and the X-ray generator control system, which is convenient and quick to operate.
● The image acquisition system has multiple functions such as patient management,image acquisition,image processing,image observation,and case reports.
● The workstation supports the DICOM3.0 standard protocol and can transfer images with PACS system.
Interactive design,friendly and convenient
● The excellent human-computer interaction design is more in line with the human body structure,which can effectively relieve the discomfort of muscle soreness and physical fatigue caused by long-term operation,and help medical staff improve work efficiency.
● Built-in preset parameters for standardized postures,graphical display of a variety of commonly used clinical postures,support for re-editing and memorizing posture parameters,therefore doctors can adjust and optim
-ize exposure parameters personally.

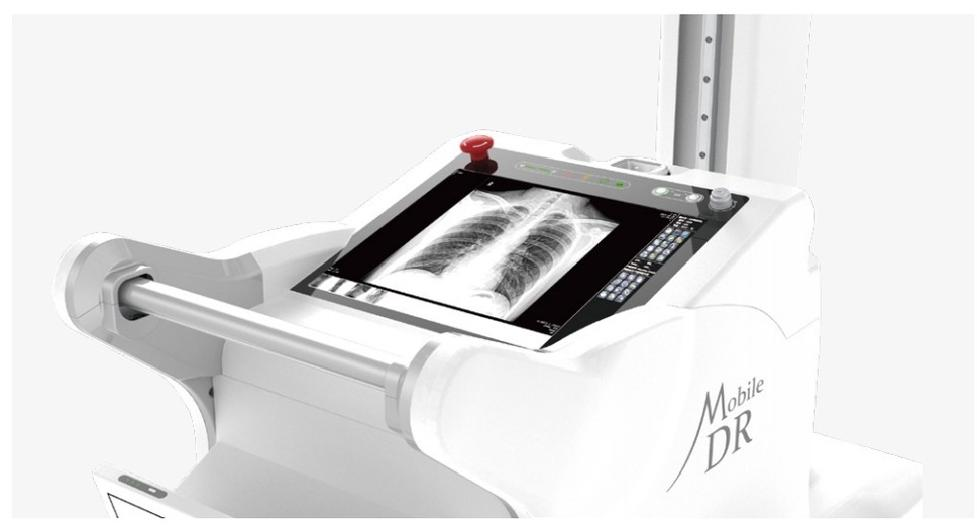

Graphical operation interface
● Large-size touch screen,equipped with professional image processing software with humanized graphical
interactive interface which can shorten the running-in period between medical staff and the machine effectively.
● Understandable icons,simple and easy to understand,save training time and cost for medical treatment.
High productivity, better operation experience
Esay and positioning
The PLX5300A can be used flexibly in hospital corridors,wards,ICU, outpatient and emergency departments.The agility of PLX5300A improves its efficiency as a mobile DR to satisfy more clinical needs.
Anti-collision design
The front of the PLX5300A is equipped with an automatic collision people and machines well.
Dual motor drive
The dual motors combined with excellent mechanical design can be easily carried out by operators with one hand.
The motor runs smoothly and quietly,with low noise during traveling,and will not disturb patients even when moving in a quiet ward at night.
Strong adaptability
There is no need to change the facilities or install the ground rails and hangers,as long as the protection is well done,the PLX5300A can be used everywhere.
110V/230V power
Common voltage can charge and power PLX5300A.
Generator and tube | |
Kv scope | 40-150 kV |
Power | 50kw |
Max Tube voltage | 150kV |
mA range | 10mA to 500mA |
mAs range | 1 mAs to 630mAs |
Focal spot | 0.6 / 1.2 |
Detector | |
Type | Digital Cesium Iodide (CsI) |
Detector size | 17" x 17" |
Image resolution | 3.1 lp/mm |
Mobile unit | |
Type | Mobile X-ray unit with telescopic X-ray tube arm and wireless portable detector |
Max. boundary dimension undwe moving condition | 1480 mm * 700 mm * 1750 mm |
Focal point distance from ground | 57 to 167 cm |
Focal point distance to column | 75 to 125 cm |
Stand column rotation | Yes |
Image processing system | |
The medical imaging software has a built-in scattered radiation suppression function, which can reduce the impact of scattered radiation on image quality, thereby making the imaging effect clearer. It can basically replace hardware filter grids. | |
Pregnant women and breast-feeding women are not suitable.
Be sure to take precautions from X-ray before each exposure for patient and user. As permitted by radiography, the exposure shall be conducted with as low dose as possible.
As radioactive equipment, this equipment shall be operated by operator strictly according to provisions of the User Manual and cannot be used for other purpose except medical radiography. As improper operation will damage this equipment, it can only be used by trained personnel with needed radiation knowledge.
The potential side effects of the PLX5300A are related to X-ray radiation. There are mainly two types of side-effects of X-ray radiation:
l Deterministic effects: acute exposure to high levels of radiation may result in skin injury, tissue necrosis
l Stochastic effects: long-term health effects years and decades into future due to cumulative exposure to X-ray radiation, such as increase in DNA mutations, cataract formation and cancer incidence
The X-ray radiation dose of the PLX5300A is low which aims to limit the possibility of collateral side effects. When used as intended under medical supervision of a qualified radiographer, it is not likely anticipated to result in unforeseeable or observable side-effects.
