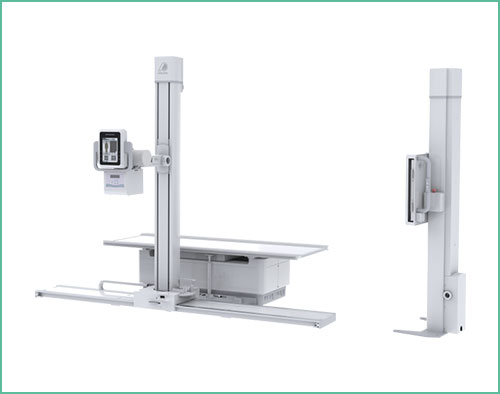

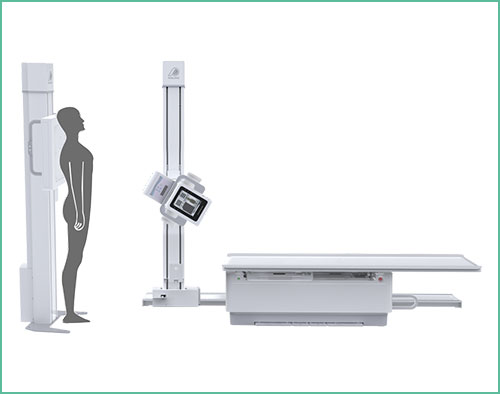

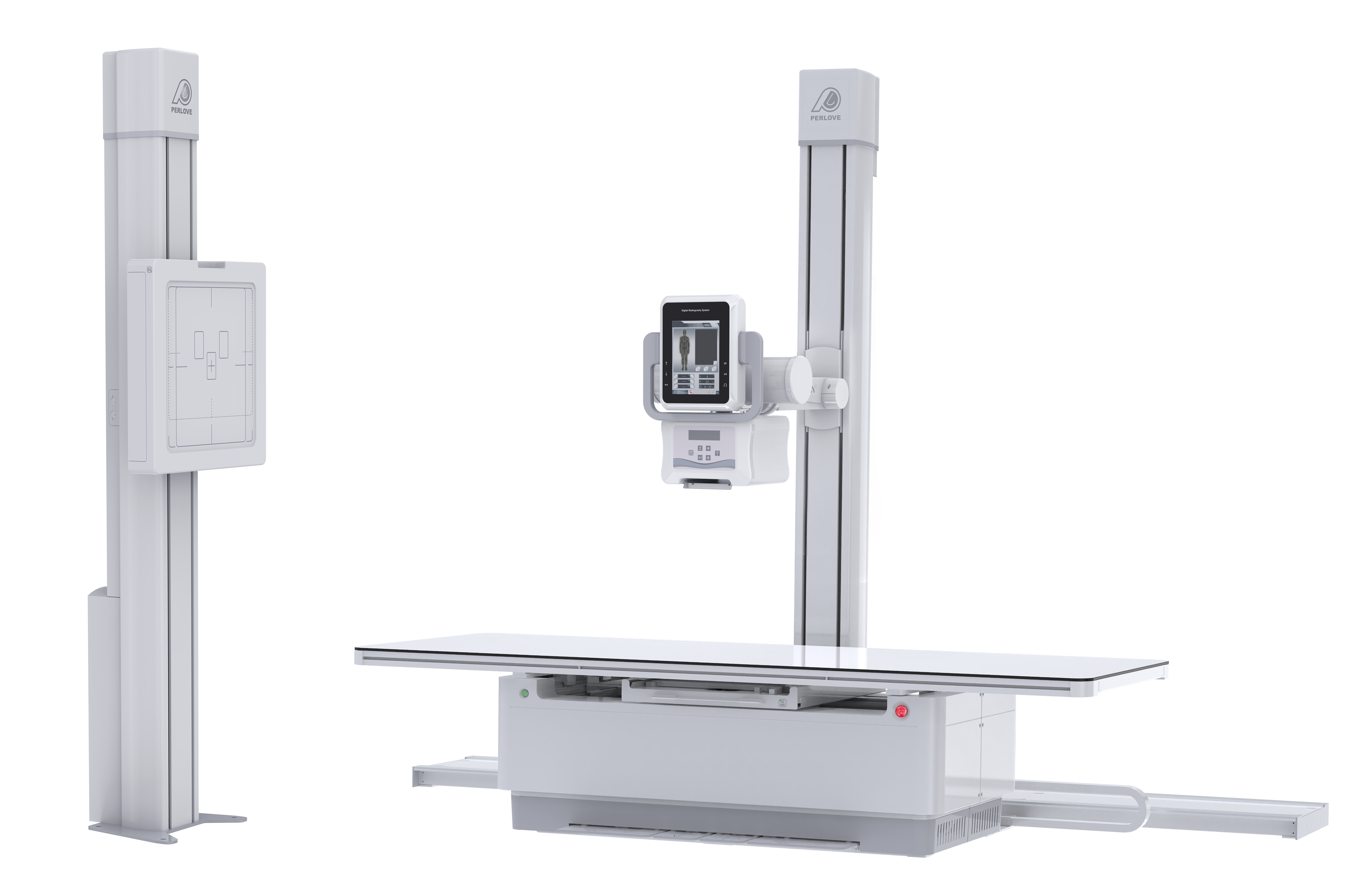

Digital Motion X-ray System Floor Mounted Version

Features & Benefits

Multiple configuration Customized examination

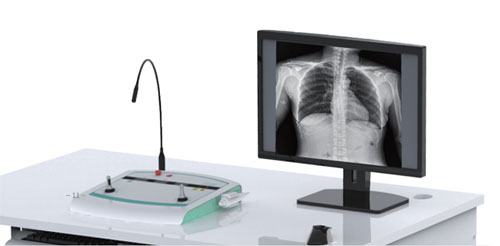

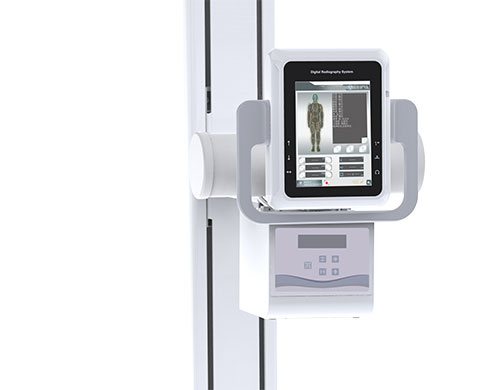

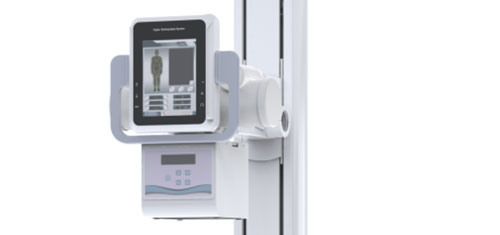

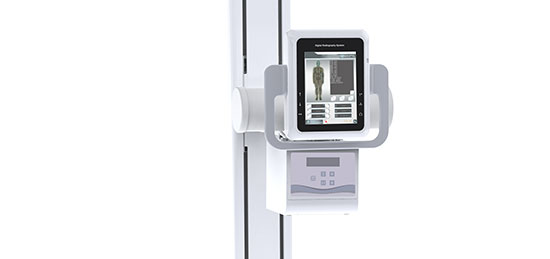

10.4 inch touchscreen control panel

Large heat capacity tube

Motorized collimatorEasy range selection

Easy range selection

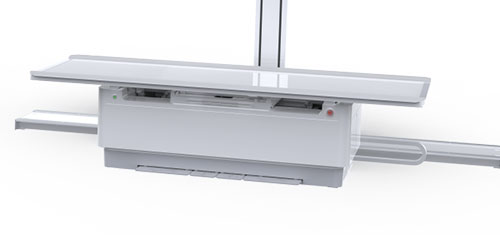

Radiography Table

Fixed table/Motorized lifting tableMinimum distance from table surfaceto the ground :50cm

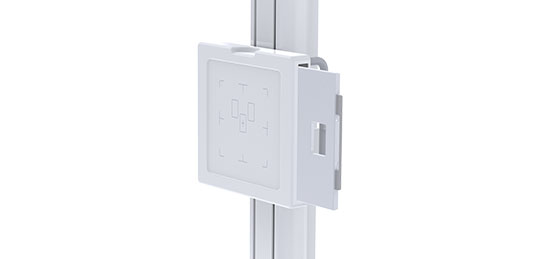

Bucky stand

High frame rate flat-panel detector100um / 139um optional

100um / 139um optional
Single / double panel optional
Static / dynamic panel optional

Why choose Digital Motion X-ray?

What is digital motion X-ray FPD?

Multifuctional
● Capable of digital radiography, digital fluoroscopy and digital angiography.

Dynamic
● A technique for analyzing dynamic changes based on the transmittance of X-rays.
● Enables clinicians to observe the dynamic motion of anatomical structures over time, enhancingdiagnostic capabilities.

Advantages compared with static X-ray

● Digital motion x-ray use leading edge tecnology inmaking detailed and real time images than staticimages.
● Evaluate the patiens' condition or recovery effectivelyby observing the dynamic changes of organ function.

One for all

Clinical Applications

Radiography Center

Health Examination Center

orthopedics and Trauma

Pulmonary

Glimaging

Gynecology

Outstanding radiography & fluoroscopy performance

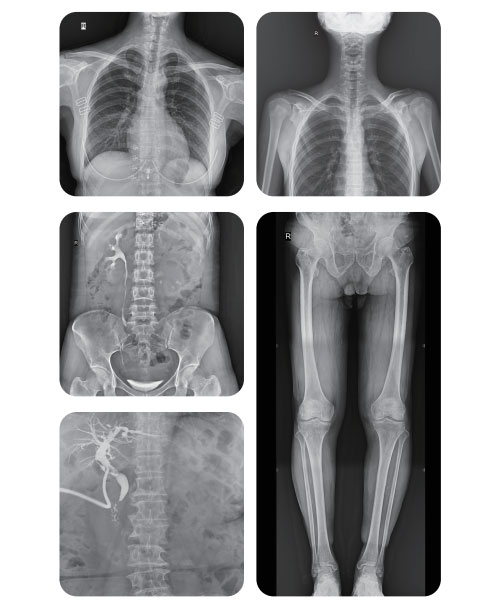

Digital radiography

General radiography, high kv radiography, oblique position radiography.

Digital fluoroscopy

Chest and abdominal fluoroscopy, foreign body localization and removal.

Digital angiography

Esophagogram, intravenous pyelography,T-tube cholangiogram, salpingography.

Digital spot imaging(DSI)

Spot imaging in milliseconds, high definition image acquisition to accurately target the lesions.

Flexible and efficiency Versatile table movement

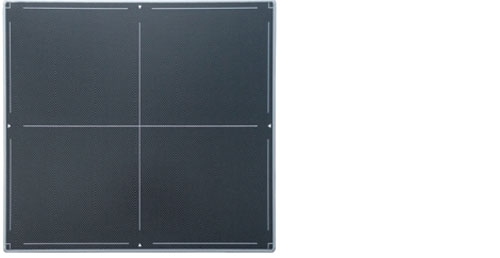

100um high frame rate dynamic flat panel detector

● 100um, more details and more accuracy
● 18 million pixel radiography
● 30 fps dynamic image acquisition
● 17" x 17" large FOv, avoid multiple exposures to reduce radiation
● Optional FPD makes the process highly efficient

Anti-scatter grid

● Each FPD equipped with removable grid.
● 1m and 1.8m standard SID.

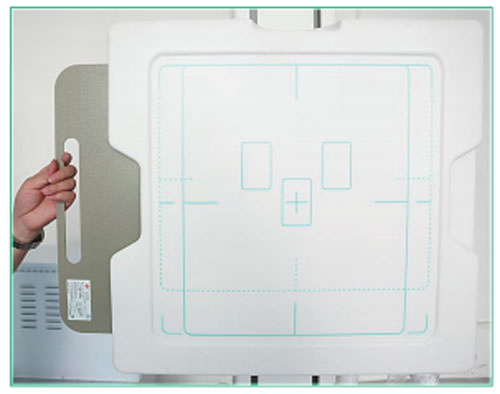

Removable grid for bucky stand

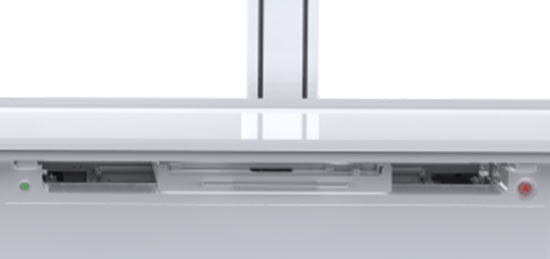

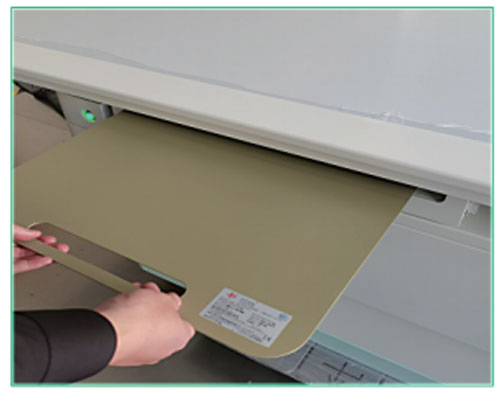

Removable grid for table

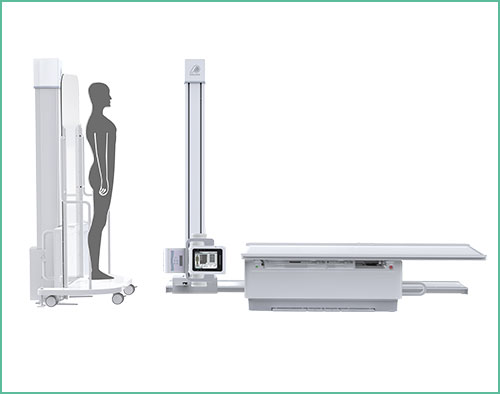

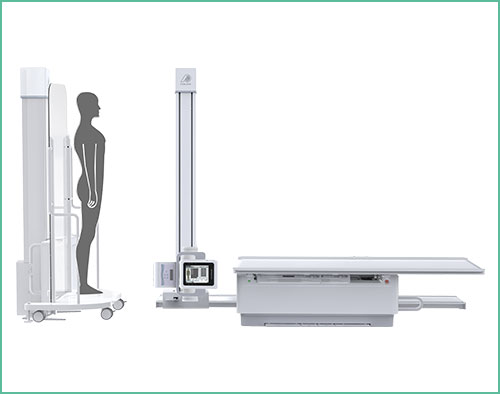

Vertical radiography stand(optional)

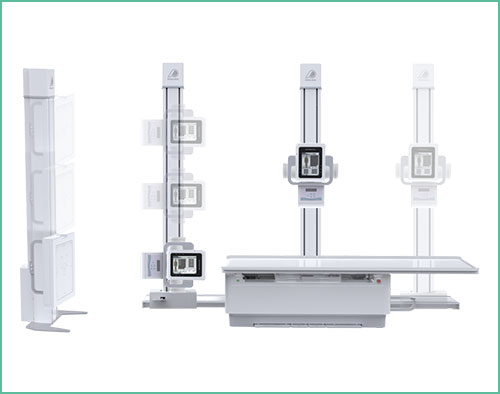

Versatile table movement

Automatic tracking function
The tube can be automatically back to center-position conveniently and quickly when the chestradiograph frame is placed.

Low profile radiography
35cm minimal distance between X-ray tube andthe floor, allowing low profile radiography coveredby wide range tube movement.

Diverse radiography position
Large angle rotatable X-ray tube enables a variety of radiography position, e.g. cervical AP view, odontoid view,submentovertical projection.

wheelchair and stretcher radiography
The tube and column can rotate 180 , providing convenience for stretcher and wheelchair patients to avoiding secondary injury.

Green environmental protection Accurate and efficient

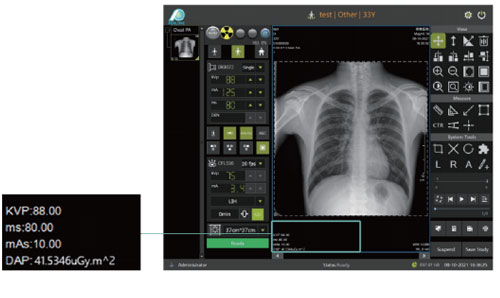

DAP- Dose visualized, safety assured

● The pioneer usher in intelligent radiation dose monitoring system.
● Synchronous dose monitoring system, guaranteeing more accurate diagnosis.

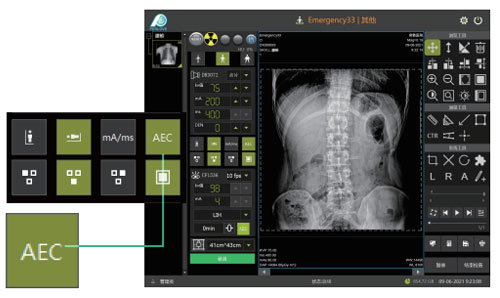

lonizaiton chamber AEC system

● The pioneer usher in intelligent radiation dose monitoring system.
● Synchronous dose monitoring system, guaranteeing more accurate diagnosis.

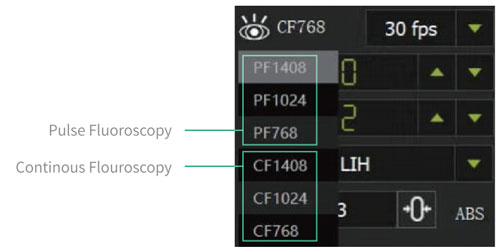

Pulse Fluoroscopy, get clear images at low doses

● A variety of perspective modes are available.
● Extremely fast exposure, reducing image noise and improving sharpness.
● Significantly reduce radiation dose and take care of the health of doctors and patients.

Feature enhancements Ultimate experience

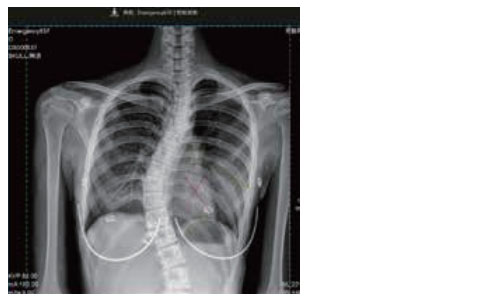

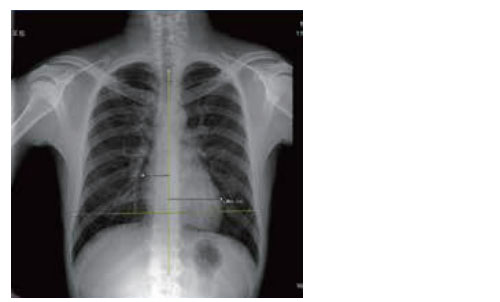

Cardiothoracic ratio measurement

Cardiothoracic ratio is a common indicator for evaluating cardiac enlargement, and is mostly used for diagnosis of exclusion or follow-up evaluation of patients.(For example, if the cardiothoracic ratio is found to be enlarged during the examination, further examination can be carried out in com-bination with the medical history and symptoms to confirm the diagnosis)

• Spine measurement

Spinal measurement can visually display the overall anato-mical shape and scoliosis position of the spine, judge the balance and flexibility of the spine, and have certain value in the diagnosis, preoperative evaluation, and postoperative judgment of scoliosis.

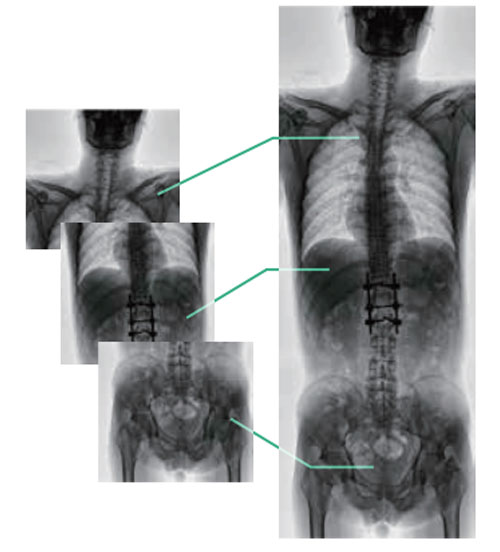

Automatic stiching function - accurate and precise(Optional)

● Panoramic images of full spine, full lower limbs.
● Accurate measurements of preoperative planning and postoperative surgery.
● One-step radiography, providing more reliable diagnostic basis for clinical practice.

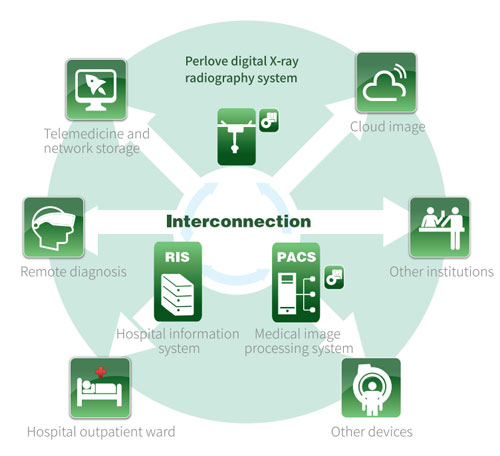

Cloud Image lnterconnection

Pre-view Various Examine Modes

● The system brings convenience to staff by multiple intelligence control modes, simple and fast control interface and efficient image collection will acceler-ate the speed and improve accuracy of clinical radiography.
● Meet the different requirements of outpatient, eme-rgency, physical examination on different cases.

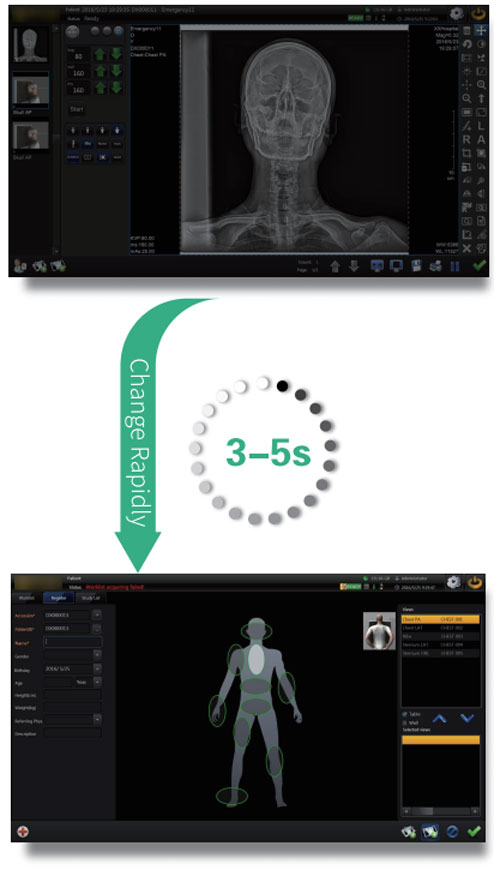

Fast Image Acquisition

● High standard software system, faster image acqui-sition, improved workflow continuity and overall inspection quality.3-5 seconds speed conversion,1-2 seconds faster than similar DR, offering faster examine experience for clinic.
● Fast automatic image processing.
● Automatic image output.

Certifications- CE,ISO Approved

● The system can be maintained remotely, it can perform fault self-diagnosis and display fault codes, quickly and accurately determine the fault status and has self-protection functions.
● lt can share information with PACS system, bring benefits for remote diagnosis.
