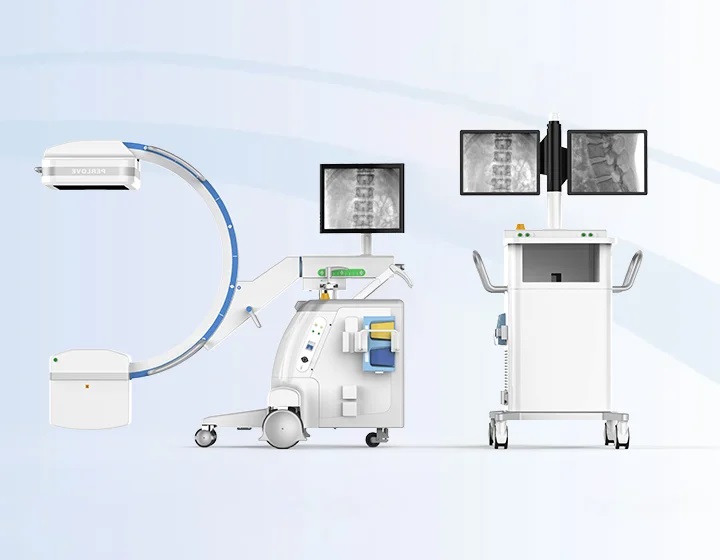

Mobile C-arm with FPD Mobile C-arm with FPD
Upgraded FPDExpanded Field of View: Higher Efficiency, Lower Radiation An optional large-size dynamic flat panel detector (FPD) doubles the imaging area. It meets the needs of large-field-of-view surgeries, helping clinicians accurately locate lesions and optimize surgical planning. The elimination of repeated fluoroscopy caused by limited field of view not only improves surgical efficiency, but also effectively reduces radiation dose. Innovative Material: Advanced Imaging The optional IGZO flat panel features higher electron mobility for smooth, blur-free imaging. With finer pixel design, image resolution is significantly enhanced to clearly visualize anatomical details. Meanwhile, it greatly improves Detective Quantum Efficiency (DQE).
| Clinical Images
|
User-Friendly Flexible EfficientOne-Click Startup, Rapid Activation One-click startup eliminates cumbersome boot-up procedures. It powers on instantly and automatically enters the system interface of the workstation fast, enabling quick response in emergency situations. Easy Operation, Higher Efficiency Both the tube and flat panel feature a laser positioning system for efficient intraoperative positioning without radiation exposure. It reduces radiation dose for both patients and medical staff while enhancing clinical work efficiency. Intuitive Touchscreen The anatomical graphic interface is intuitive, allowing for quick setting of exposure parameters.
| Intelligent Image Processing Equipped with intelligent real-time image processing technology, it automatically analyzes images and completes enhancement and optimization, eliminating cumbersome manual operations and rapidly delivering high-quality images. Multiple Protection Reduced RadiationLower Leakage Radiation in the Loading State The X-ray source features a highly sealed design that effectively prevents X-ray leakage. When the device is in operation, radiation leakage is as low as 0.06 mGy/h, significantly enhancing radiation safety for both patients and medical staff.
|
DAP Integrated with DAP monitoring, it intuitively displays the radiation dose of each exposure, enabling clinicians to monitor radiation levels in real time, control radiation intake effectively, and deliver enhanced protection for both patients and medical staff. Intelligent Pulsed Fluoroscopy Equipped with leading intelligent variable-frequency low-dosed pulsed fluoroscopy technology, it significantly improves imaging quality while effectively reducing radiation dose. Proprietary High-Frequency Inverter Adopting proprietary high-frequency high-voltage generator, it features a high main inversion frequency that minimizes soft X-ray production and effectively enhances X-ray quality. Virtual Collimator The virtual collimator allows clinicians to preview and adjust the exposure field of view without radiation exposure, eliminating unnecessary irradiations. Filter Design The specialized filter design effectively filters out soft rays, reducing radiation dose for enhanced safety. |
Precision in Details
|
Articulating Monitors Large-angle rotatable monitors support multi-directional adjustment, delivering versatile observation perspectives for precise clinical operations.
Mobile Workstation Cart The easily maneuverable workstation canbe placed outside the operating room to enable remote exposure, effectively minimizing radiation.
X-ray Safety Lock When the lock is engaged, no X-ray emission occurs, eliminating the risk of accidentalexposure from unintended foot switch activation. |
Handheld Controller The handheld remote controller enables C-arm movement and exposure parameter adjustment, streamlining clinical procedures for enhanced efficiency.
Dynamic Flat Panel Detector The dynamic FPD delivers high DQE, low noise, wide dynamic range, excellent imaging performance and clear images. working time, more than 3times of continuous perspective under the same X-ray conditions. |
Removable Grid For pediatric and other vulnerable patient groups, the grid can be easily removed to minimize radiation dose.
Monoblock X-ray Tube High-quality monoblock X-ray generator | Multidisciplinary Use Versatile ŠolutionsCase 1: Knee replacementPatient Condition: Refractory pain caused by knee osteoarthritis, which failed to respond to various conservative treatments. Intraoperative X-ray images clearly visualize the morphology of knee bones and articular surfaces, assisting surgeons in precise prosthesis implantation.
Case 2: Pedicle screw internal fixation Patient Condition: Lumbar disc herniation with pain in the lower extremities. In order to decompress the vertebrae, pedicle screws were accurately implanted into the lumbar vertebrae by the guidance of lumbar AP and lateral image. |
Case 3: Distal tibiofibular internal fixation Patient Condition: Oblique fractures of the distal tibia and fibula due to a traffic accident. Guided by AP and lateral images of the tibia and fibula, compression plates were precisely implanted to achieve optimal skeletal stability. |  |
Expanded Field of View: Higher Efficiency, Lower Radiation
An optional large-size dynamic flat panel detector (FPD) doubles the imaging area. It meets the needs of large-field-of-view surgeries, helping clinicians accurately locate lesions and optimize surgical planning. The elimination of repeated fluoroscopy caused by limited field of view not only improves surgical efficiency, but also effectively reduces radiation dose.
Innovative Material: Advanced Imaging
The optional IGZO flat panel features higher electron mobility for smooth, blur-free imaging. With finer pixel design, image resolution is significantly enhanced to clearly visualize anatomical details. Meanwhile, it greatly improves Detective Quantum Efficiency (DQE).
Clinical Images
One-Click Startup, Rapid Activation
One-click startup eliminates cumbersome boot-up procedures. It powers on instantly and automatically enters the system interface of the workstation fast, enabling quick response in emergency situations.
Easy Operation, Higher Efficiency
Both the tube and flat panel feature a laser positioning system for efficient intraoperative positioning without radiation exposure. It reduces radiation dose for both patients and medical staff while enhancing clinical work efficiency.
Intuitive Touchscreen
The anatomical graphic interface is intuitive, allowing for quick setting of exposure parameters.
Intelligent Image Processing
Equipped with intelligent real-time image processing technology, it automatically analyzes images and completes enhancement and optimization, eliminating cumbersome manual operations and rapidly delivering high-quality images.
Lower Leakage Radiation in the Loading State
The X-ray source features a highly sealed design that effectively prevents X-ray leakage. When the device is in operation, radiation leakage is as low as 0.06 mGy/h, significantly enhancing radiation safety for both patients and medical staff.
DAP
Integrated with DAP monitoring, it intuitively displays the radiation dose of each exposure, enabling clinicians to monitor radiation levels in real time, control radiation intake effectively, and deliver enhanced protection for both patients and medical staff.
Intelligent Pulsed Fluoroscopy
Equipped with leading intelligent variable-frequency low-dosed pulsed fluoroscopy technology, it significantly improves imaging quality while effectively reducing radiation dose.
Proprietary High-Frequency Inverter
Adopting proprietary high-frequency high-voltage generator, it features a high main inversion frequency that minimizes soft X-ray production and effectively enhances X-ray quality.
Virtual Collimator
The virtual collimator allows clinicians to preview and adjust the exposure field of view without radiation exposure, eliminating unnecessary irradiations.
Filter Design
The specialized filter design effectively filters out soft rays, reducing radiation dose for enhanced safety.
Articulating Monitors
Large-angle rotatable monitors support multi-directional adjustment, delivering versatile observation perspectives for precise clinical operations.
Mobile Workstation Cart
The easily maneuverable workstation canbe placed outside the operating room to enable remote exposure, effectively minimizing radiation.
X-ray Safety Lock
When the lock is engaged, no X-ray emission occurs, eliminating the risk of accidentalexposure from unintended foot switch activation.
Handheld Controller
The handheld remote controller enables C-arm movement and exposure parameter adjustment, streamlining clinical procedures for enhanced efficiency.
Dynamic Flat Panel Detector
The dynamic FPD delivers high DQE, low noise, wide dynamic range, excellent imaging performance and clear images. working time, more than 3times of continuous perspective under the same X-ray conditions.
Removable Grid
For pediatric and other vulnerable patient groups, the grid can be easily removed to minimize radiation dose.
Monoblock X-ray Tube
High-quality monoblock X-ray generator
Case 1: Knee replacement
Patient Condition: Refractory pain caused by knee osteoarthritis, which failed to respond to various conservative treatments.
Intraoperative X-ray images clearly visualize the morphology of knee bones and articular surfaces, assisting surgeons in precise prosthesis implantation.
Case 2: Pedicle screw internal fixation
Patient Condition: Lumbar disc herniation with pain in the lower extremities.
In order to decompress the vertebrae, pedicle screws were accurately implanted into the lumbar vertebrae by the guidance of lumbar AP and lateral image.
Case 3: Distal tibiofibular internal fixation
Patient Condition: Oblique fractures of the distal tibia and fibula due to a traffic accident.
Guided by AP and lateral images of the tibia and fibula, compression plates were precisely implanted to achieve optimal skeletal stability.
